VBA Excel | Send Report in an Email

In this tutorial, we will create a macro to send a report using Visual Basic for applications, along with Excel and Outlook.
This becomes very convenient when a report needs to be sent regularly in a consistent way to a specific group of recipients, with a file that can be updated within Excel, without opening a previously sent email and changing the information, which is prone to errors if it has to be delivered right away with little time to spare.

We will add a table in the email, and also the Excel file attached. For this tutorial, we will be using Windows, as at this moment the macro has not been developed for Mac.

Mac code in the works.

Excel VBA File

Manual

GitHub Project

About Working With Excel Macros In Tandem with Outlook

We need to add a reference in order to have Word to be the HTML editor of our email.

To accomplish this, we need to open the Visual Basic Editor, then go to the menu Tools > References scroll down, find and check Microsoft Word 16.0 Object Library in order to make MS Word the HTML editor and produce the email properly.

We created a finished report available online, called Email.xlsb

Download the working macro file here or by clicking on the filename above.

Instructions to Create the file from scratch

Follow these steps:

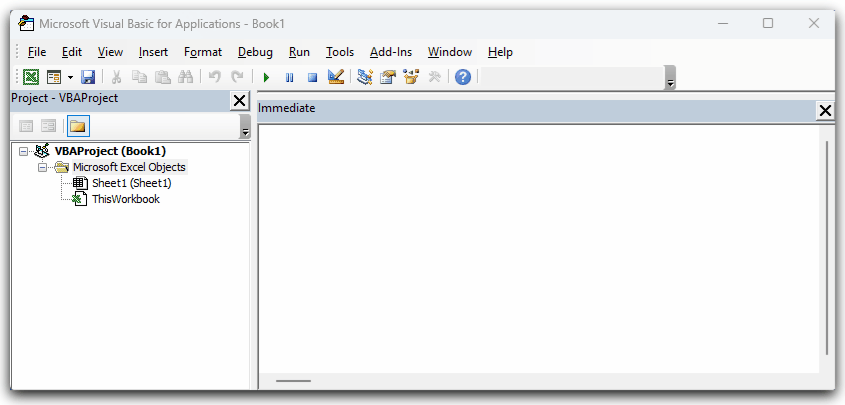

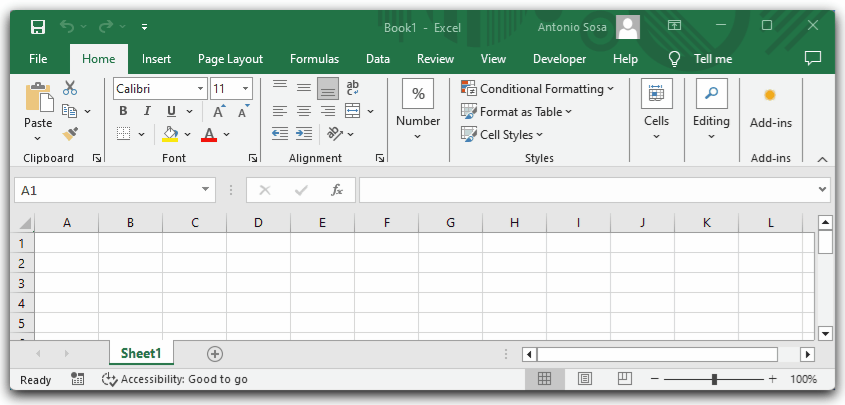

Step 1: Open Visual Basic by pressing alt + F8 or going to Developer > Visual Basic.
Step 2: Add a new module if there is not one already.
Step 3: Enter or copy and paste the following code in the new module: (Both macro and function code are included in this step)

	Sub Mail_workbook_Outlook()

		'Working in Excel 2000-2016
		'This example sends the last saved version of the Activeworkbook

		Dim sRecipients As String   '   stores recipients list
		Dim sCC As String           '   stores CC list
		Dim sSubject As String      '   stores subject
		Dim rngTable As Range

		Dim wdDoc As Word.Document

		Dim OutApp As Object
		Dim OutMail As Object
		Dim oTestOutApp As Object

		Set OutApp = CreateObject("Outlook.Application")
		Set OutMail = OutApp.CreateItem(0)

		'   checki if outlook is , if not, open outlook
		On Error Resume Next
			Set oTestOutApp = GetObject(, "Outlook.Application")
		On Error GoTo 0

		If oTestOutApp Is Nothing Then
			Shell ("OUTLOOK")
		End If

		'   set word as html editor
		Set wdDoc = OutMail.GetInspector.WordEditor

		' get table range, here we use a named range called "Stock_Report_Table"
		Set rngTable = ThisWorkbook.Sheets("Report").Range("Stock_Report_Table")

		'   Text is in HTML
		sBody = "<font size=""11pt"" face=""Calibri"" color=""black"">" _
			& "Hello," & "<br>" _
			& "<br>" _
			& "Please see attached for a summary of this report." & "<br>" _
			& "</font>" & RangetoHTML(rngTable)

		'   <br> is for line break
		sSignature = "<font size=8pt face=""Helvetica"" color=""red"">" _
			& "<br>" _
			& "<br>Thank you,<br>" _
			& "<b>CrowWarez</b><br>" _
			& "<a href=""https://www.instagram.com/antoniososa7997/"">Instagram</a> | " _
			& "<a href=""https://x.com/a_tsosa"">X</a> | " _
			& "<a href=""https://www.facebook.com/antonio.sosa"">Facebook</a> | " _
			& "<a href=""https://www.youtube.com/@CrowWarez-l3m"">Youtube</a></font>"


		'   Edit recipients list or use a range in a worksheet
		sRecipients = _
		"Person who receives the report <email@domain.net>; "

		sCC = "email2@domain.net"

		'   subject has a dynamic date
		sSubject = "Sample Report - " & Format(Now, "Mmmm dd yyyy")

		On Error Resume Next
		With OutMail
			.To = sRecipients
			.CC = sCC
			.BCC = ""
			.Subject = sSubject
			.HTMLBody = sBody & sSignature
				'You can add other files also like this
				.Attachments.Add ActiveWorkbook.FullName
			.Attachments.Add sFilename
			.Attachments.Add sPDF
			.Display ' or use Send
		End With
		On Error GoTo 0

		Set OutMail = Nothing
		Set OutApp = Nothing

	End Sub

	Function RangetoHTML(rng As Range)

		'   Changed by Ron de Bruin 28-Oct-2006
		'   Working in Office 2000-2016
		'   This function converts an Excel table into HTML

		Dim fso As Object
		Dim ts As Object
		Dim TempFile As String
		Dim TempWB As Workbook

		TempFile = Environ$("temp") & "\" & Format(Now, "dd-mm-yy h-mm-ss") & ".htm"

		'   Copy the range and create a new workbook to past the data in
		rng.Copy
		Set TempWB = Workbooks.Add(1)
		With TempWB.Sheets(1)
			.Cells(1).PasteSpecial Paste:=8
			.Cells(1).PasteSpecial xlPasteValues, , False, False
			.Cells(1).PasteSpecial xlPasteFormats, , False, False
			.Cells(1).Select
			Application.CutCopyMode = False
			On Error Resume Next
			.DrawingObjects.Visible = True
			.DrawingObjects.Delete
			On Error GoTo 0
		End With

		'   Publish the sheet to a htm file
		With TempWB.PublishObjects.Add( _
			 SourceType:=xlSourceRange, _
			 Filename:=TempFile, _
			 Sheet:=TempWB.Sheets(1).Name, _
			 Source:=TempWB.Sheets(1).UsedRange.Address, _
			 HtmlType:=xlHtmlStatic)
			.Publish (True)
		End With

		'   Read all data from the htm file into RangetoHTML
		Set fso = CreateObject("Scripting.FileSystemObject")
		Set ts = fso.GetFile(TempFile).OpenAsTextStream(1, -2)
		RangetoHTML = ts.readall
		ts.Close
		RangetoHTML = Replace(RangetoHTML, "align=center x:publishsource=", _
							  "align=left x:publishsource=")

		'   Close TempWB
		TempWB.Close savechanges:=False

		'   Delete the htm file we used in this function
		Kill TempFile

		Set ts = Nothing
		Set fso = Nothing
		Set TempWB = Nothing

	End Function

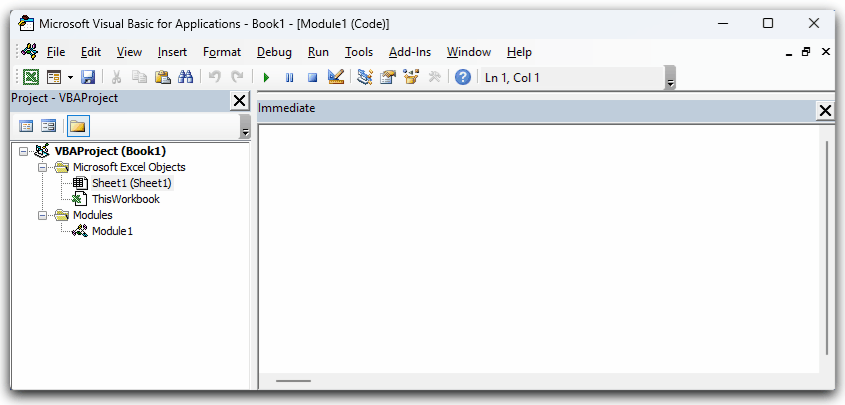

Step 4: Close Visual Basic.

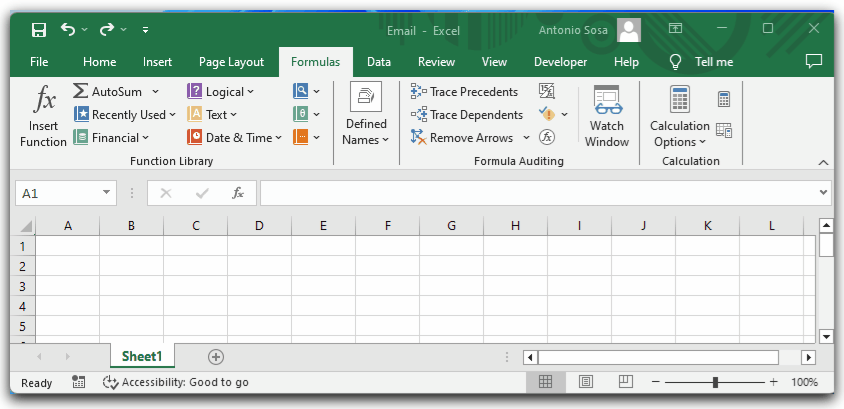

Step 5: Step 5. In Excel, rename the spreadsheet “Sheet1” to “Report”, then on cell A1, enter the sample table below:
Sample Report
Account Account Description Stock Units Stock Price
1500 J Peterman 1000 121.00
40120 Kramerica Industries 575 75.00
61015 Vandelay Imports / Exports 14 3.00
55500 Hennigan's Whisky 457 55.00
40110 Kruger Industrial Smoothing 671 4.00
77150 Pendant Publishing 77 98.00


Then, select cells A1 to D12 and create a named range by clicking on the Name Box, just above the intersection of the Columns and Rows headers and with A1:D12 still selected, enter the name Stock_Report_Table.

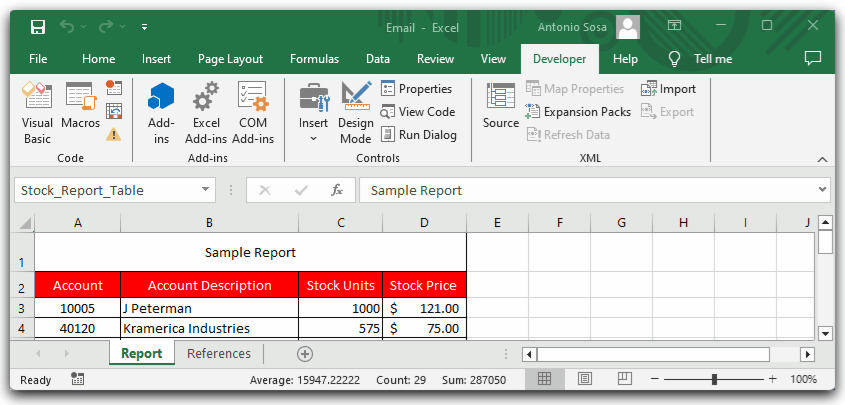

Step 6: Press F5 to open the Run Macro window, or go to Developer > Macros
Step 7: Select macro and click Run.

How the Macro and the Function Work

The Sub Mail_workbook_Outlook() does the following tasks:

1 - Declare all the variables and objects we will be using in our process.
Examples of these are:
sRecipients, which is a text variable we will use to store the email addresses we will be sending our report, remember that multiple email addresses need to be separated by a semicolon (;).
OutApp is an object that we will set as CreateObject("Outlook.Application"). This object needs to be referenced in VBA, by going in VBA to Tools > References scrolling down and finding and checking Microsoft Word 16.0 Object Library. We add Word as it is needed as the HTML editor to produce the email just the way we want it.

2 - Set the objects and variables. If these are not set, the macro will crash as there is vital information that VBA needs in order to work.
Examples:
Set OutApp = CreateObject("Outlook.Application").

OutApp is set as the Outlook application, this way VBA can create a new email, add a Subject, a Body, Recipients, etc.

We check if Outlook is already open, if not, we open it with the line:
‘Shell (“OUTLOOK”)’:


		On Error Resume Next
		Set oTestOutApp = GetObject(, "Outlook.Application")
		On Error GoTo 0

		If oTestOutApp Is Nothing Then
			Shell ("OUTLOOK")
		End If


		sRecipients = _

		"Person who receives the report <email@domain.net>; "

sRecipients is a string, or text string, you can update this in the VBA code or use a range in Excel with a list of emails, same for the body, CC, CCO.

3 - With OutMail object:
Here is where we tell Outlook to finally get all the data to create the email:


    With OutMail
        .To = sRecipients
        .CC = sCC
        .BCC = ""
        .Subject = sSubject
        .HTMLBody = sBody & sSignature
            'You can add other files also like this
            .Attachments.Add ActiveWorkbook.FullName
        .Attachments.Add sFilename
        .Attachments.Add sPDF
        .Display ' or use .Send
    End With

Note that the next to last line we use .Display to have the new email opened before sending it. If you are confident enough about the data, you can replace it with .Send and OutMail will send it immediately.

The Function RangetoHTML(rng As Range) does this:

1) Declare all the variables and objects just as with the Sub.

2) Declare a temporary file name to create the HTML content we are getting from Excel format.

3) Process the table:

* Copy the table.
* Add a temporary workbook to process the table.
* Paste the copied table, its formats and other attributes.
* Publish the sheet to a htm file.
* Read the data from that temporary htm file in order to be inserted into the email.
* Close and delete temporary files.

There are many updates or improvements we can make to this macro file, such as adding a pdf attachment, create lists to store all the recipients or body or signature, add pictures, completely automate running the macro and sending the email in the background at a particular time of day, like before the work day starts or after hours.

If you need a specific update, send me an email to antonio@sosa.tv or leave a comment in the video and I will be happy to help.
